Back End Design Using Cadence Tool – Physical Implementation
Authors: Hetaswi Vankani, Adithya Venkatramanan, and Dr. Dong S. Ha
Tool: Encounter Digital Implementation (encounter)
Floorplanning
1. Core utilization: 0.72
2. Core to left: 100; Core to right: 100; Core to top: 100; Core to bottom: 100
3. Let all specifications be default.

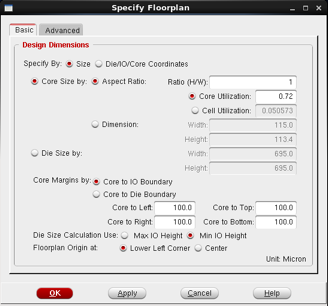

![Fig 06. Parameters for floorplanning](/content/dam/mics_ece_vt_edu/ICDesign/Tutorials/Cadence/PhysicalImplementation/Fig06.png)

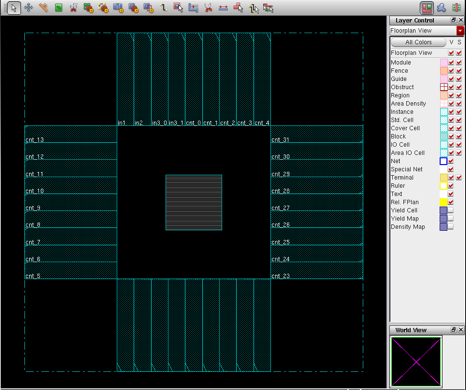

4. Hit O.K. On doing so the design would appear as in fig 07.
![Fig 07. Die size set](/content/dam/mics_ece_vt_edu/ICDesign/Tutorials/Cadence/PhysicalImplementation/Fig07.png)
